Sound insulation MUTE SYSTEM™ 23

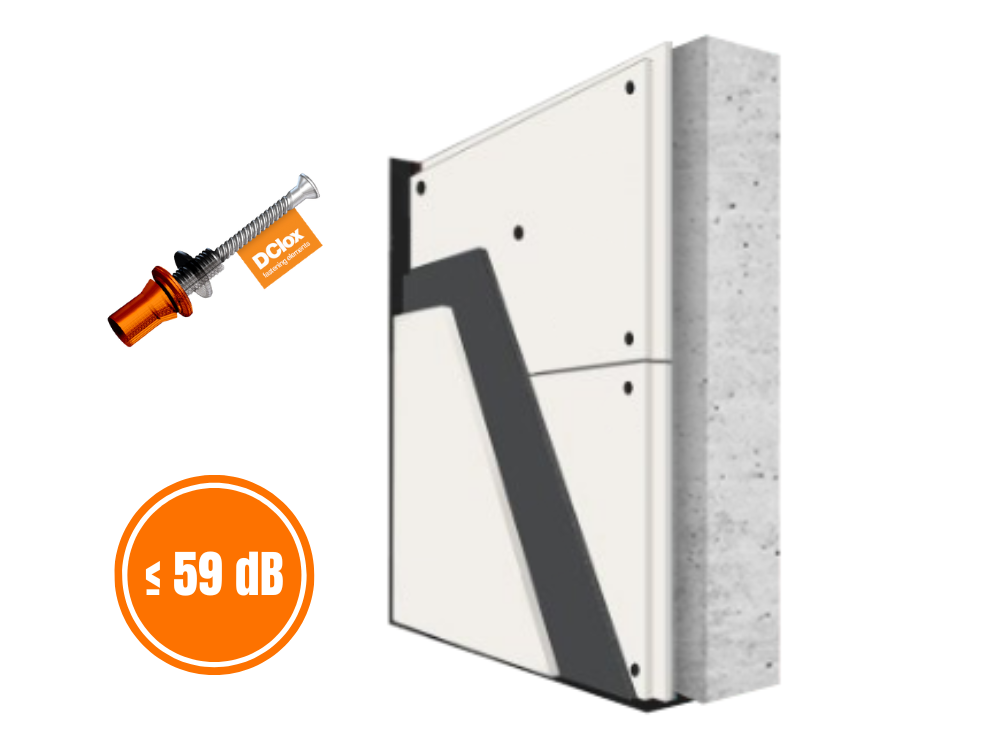

MUTE SYSTEM™ 23 is a thin point-connected soundproofing system for walls developed and refined over the years by the R&D department of DECIBEL.
The main acoustic principle used in the electromechanical analogy system of mass + spring + mass. DECIBEL engineers have created an extra thin and 4 times more effective system, mounted via 5 specially designed anti-vibration DClox™ fastening elements.
DECIBEL ensures the quality and efficiency of the system and its soundproof parameters with simulations using Finite Element Modelling, backed up by verified laboratory testing.
MUTE SYSTEM™ 23 is suitable for residential properties, public buildings and industrial applications.
* The Rw table of acoustic performance can be seen below.
DClox™ is a patented fastener specially designed for the installation of MUTE SYSTEM™ soundproofing panels.
These innovative fasteners are made from special elastomers, making them an effective vibro insulation point connection between the existing partition wall and the panel. Their geometry reduces the rate of sound transmission and minimises the contact area between soundproofing panels and the existing wall to below 1%.
Accessories for increasing the soundproofing performance:
DClant™ – Sound and Vibro insulating sealant, which adds +3 dB to the system
DCvisco™ – Sound and Vibro insulating membrane, which adds +3 dB to the system
DCstrip™ – Sound and Vibro isolating tape which adds +2 dB to the system
Sound reduction index
|Hollow brick wall 120mm||54 dB|
|Hollow brick wall 250mm||59 dB|
|Аerated concrete wall 150mm||54 dB|
|Аerated concrete wall 250mm||57 dB|
|Panel-wall contacting area||less than 1%|
|Air borne sound reduction||up to 59 dB|
|Fire Resistance||B, s1 - d0|
